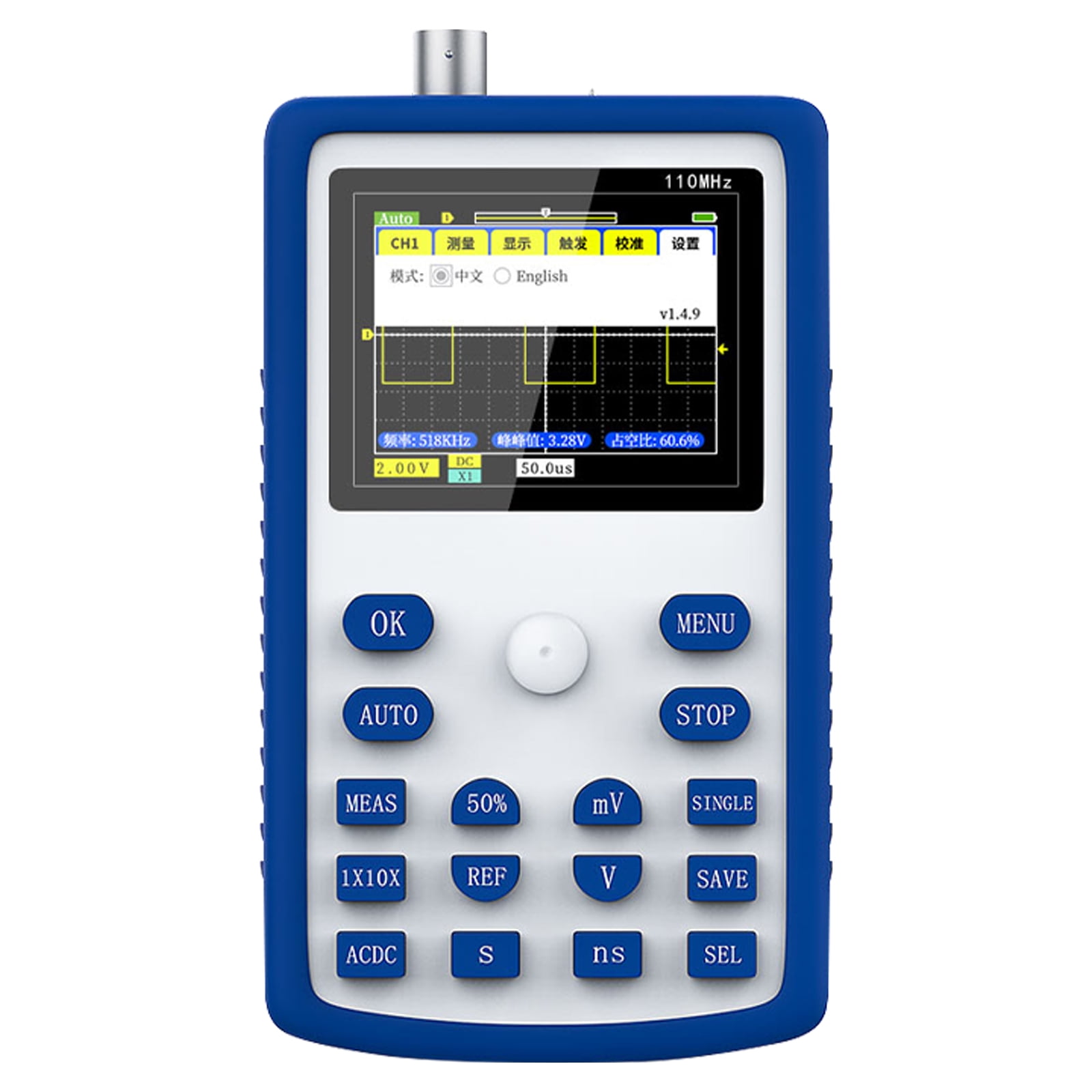

Professional Digital Oscilloscope Portable Storage Oscilloscope Kit 110MHz Bandwidth 500MS/s Sampling Rate Waveform Storage

Product parameters: <br><br>Model: FNIRSI-1C15+<br>Number of channels: 1<br>Screen size: 2.4 inches <br>Screen Resolution: 320*240 <br>Analog bandwidth: 110Mhz <br>Sampling Rate: 500M <br>1k Hz self-checking square wave: Stand by <br>Rise Time: &lt;3ns <br>Storage depth: 12 Kpts <br>Time base range: 5ns-10s <br>Vertical sensitivity: 20mv/div-100v/div <br>Trigger mode: Auto/Normal <br>Trigger type: Rising/Falling <br>Display mode: YT/scroll <br>Afterglow time: None/1s/∞ <br>Charging method: 5V/800mA <br>Voltage measurement range: ± 40v (x1 file);± 400v (x10 file) <br>Channel coupling: AC-DC <br>One-button automatic: Stand by <br>Waveform measurement: 14 types <br>Measurement accuracy: ±2% <br>Reference waveform: Stand by <br>Waveform save: Stand by <br>Frequency accuracy: ±0.01%

• This is a fully functional, practical and cost-effective handheld oscilloscope. The real-time sampling rate is 500M, and the analog bandwidth is 110MHz. It also added a one-key quick auto function on this basis, so you can easily grasp the waveform like a desktop computer.
• Digital oscilloscope has been added 1k Hz self-test square wave, and the storage depth has been upgraded to 12kpts. With reference to the waveform, you can pause at any time to save the previous frame waveform to the screen. You can also compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms.
• Built-in 3000mAH rechargeable battery. It can work continuously for more than 10 hours after fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-drop. The joystick replaces the original arrow keys, making the operation simpler and more effective.
• Have special features like one key automatic, waveform analysis, waveform save, reference waveform, intelligent anti-burn, etc. Widely used in home appliance testing, car diagnosis, research education, product development and main measurement.
• Package include: 1 x oscilloscope, 1 x 100mhz oscilloscope probe, 1 x bnc to dual alligator clips leads, 1 set charging cable, 1 x manual, 1 x storage bag.
