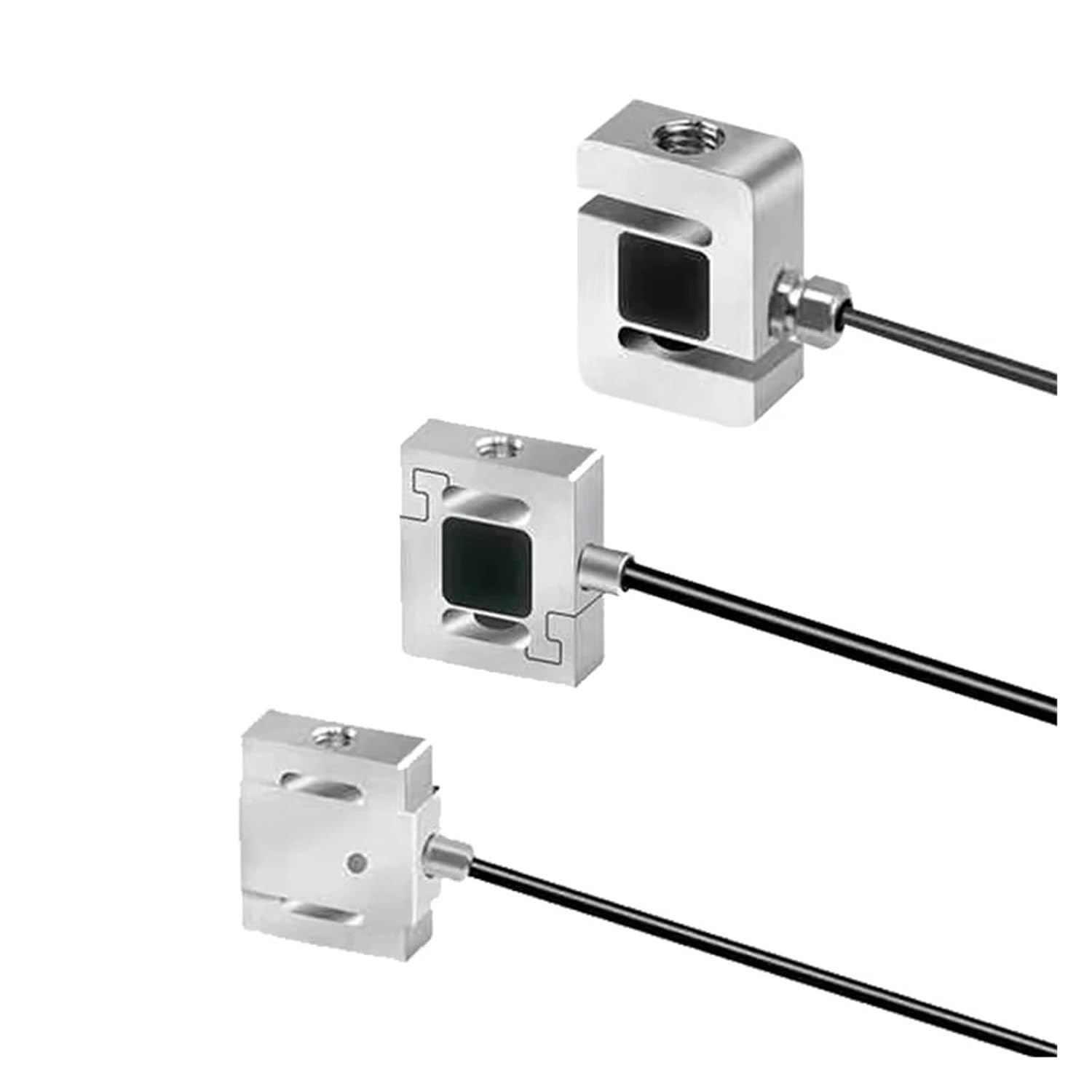

1PC TA S4 S-Type Load Cell Sensor - High Precision Force Meter Tester for Weighing Applications, 0-10KG Capacity,(10kg)

Party TimeShop you favesProduct DescriptionModel number1KG 2KG 5KG 10KGSensitivity1.0-2.0m.V/VHysteresis0.05%F.SNon-linearity0.1%F.SRelative creep over 30 min0.05%F.STemp. influence on sensitivity0.05%F.S/10Temp. influence on the zero signal0.05%F.S/10Zero output2%FSSafe Load Limited150%F.SUltimate Over Load200%F.SInsulation resistance5000 MOperating temperature range-20~+80Impedance350Reference excitation voltage5-10VMaterialStainless Steellevel of protectionIP65Mode of connectionInput+ : Red, Input- : Black, Output+ : Green, Output- : WhiteTheory : Resistance SensorUsage : Pressure SensorMaterial : MetalType : Magnetic SensorOutput : Analog SensorCapacity : 0~10KGType : Load Cell/Force SensorSensitive : 1.0-2.0m*V/VHysteresis : 0.05%F.SNon-linearity : 0.1%F.SCreep In 30 Minutes : 0.05%F.SZero Balance : 2%F.SOperating temp. range : -20 ~ 80Temp. effect on zero : 0.05% F.S. / 10Temperature coefficient of sensitivity : 0.05%F.S. / 10Safe Load Limited : 150%F.SUltimate Over Load : 200%F.SInsulation resistance : 5000MImpedance : 350Excitation Voltage : 5~10VEnvironmental Protection : IP65Material : stainless steelOutput : Analog Signal

• High Precision: The TA S4 Load Cell Sensor offers exceptional accuracy with a sensitivity range of 1.0-2.0mV/V and non-linearity of just 0.1% F.S for reliable measurements.
• Durable and Resilient: Crafted from stainless steel with an IP65 rating, this sensor is oil-proof and water-resistant, making it suitable for various industrial environments.
• Versatile Applications: Ideal for batching scales, electronic-mechanical scales, crane scales, and automatic weighing instruments, perfect for mixing stations and asphalt stations.
• Safety First: Features an overload protection device with a safe load limit of 150% F.S and an ultimate overload capacity of 200% F.S to prevent damage during operation.
• Easy Installation: The compact structure and clear connection instructions (Input+ : Red, Input- : Black, Output+ : Green, Output- : White) ensure a hassle-free setup process.
